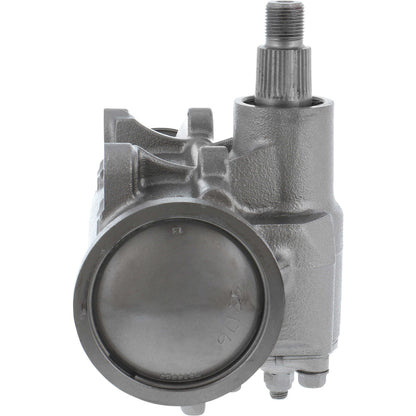

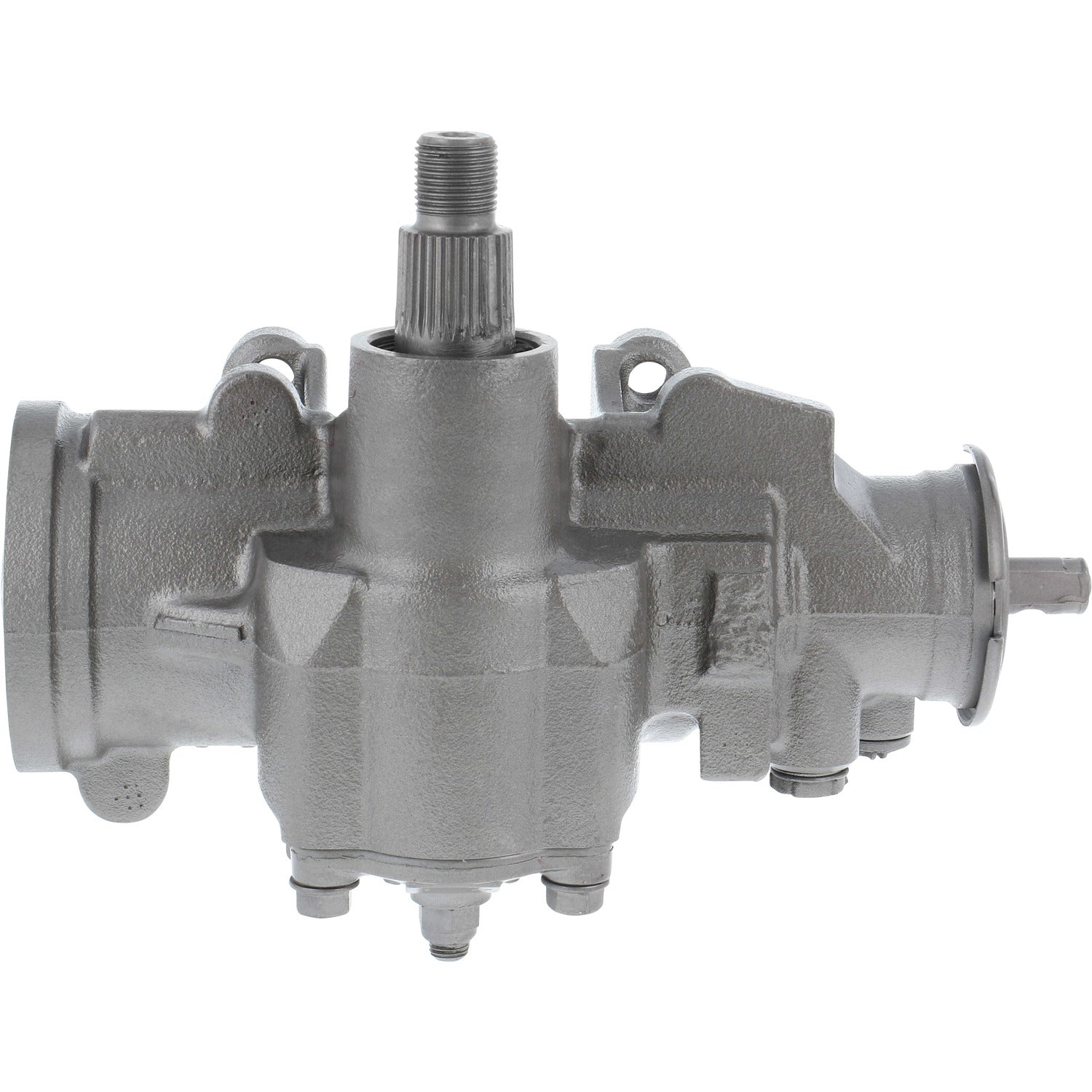

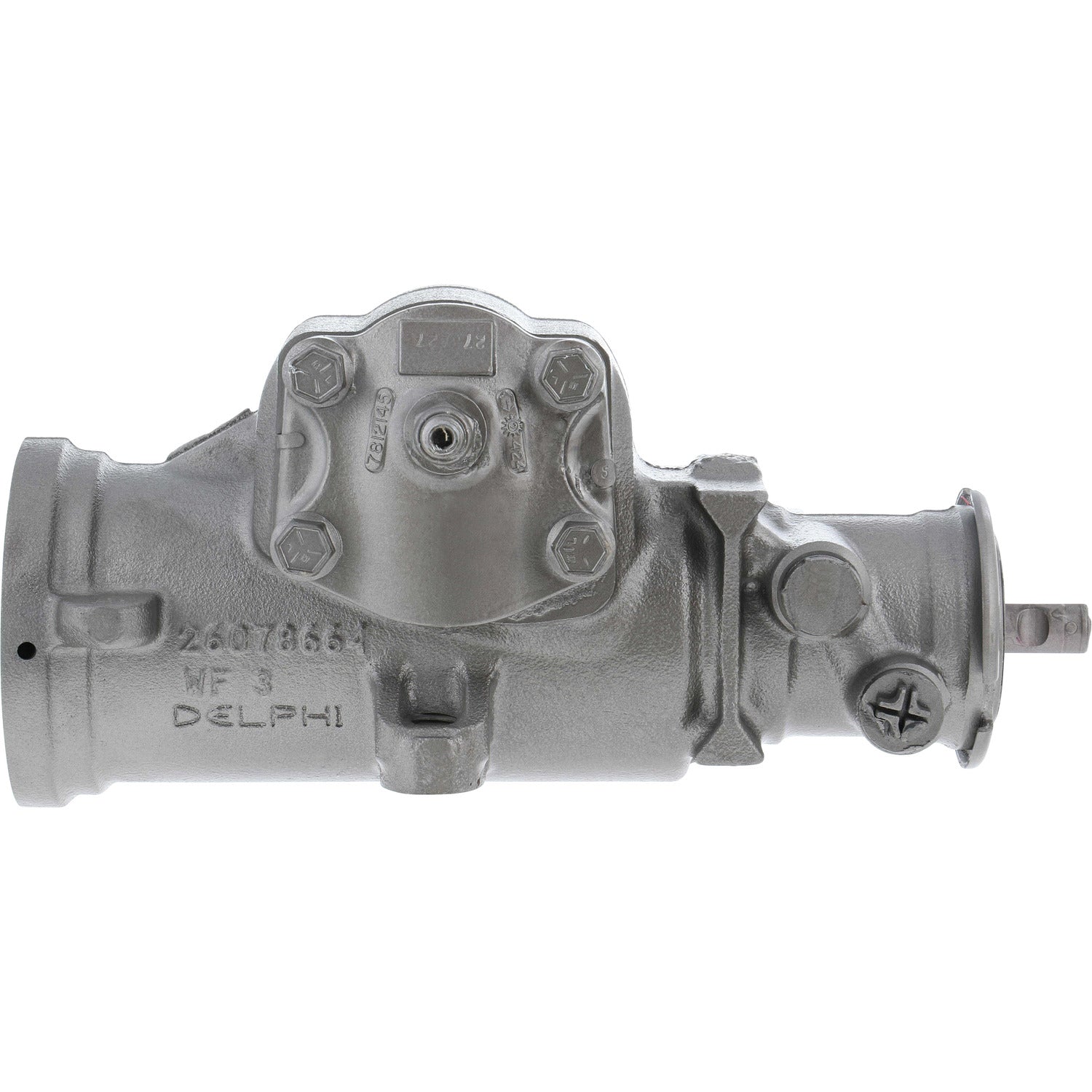

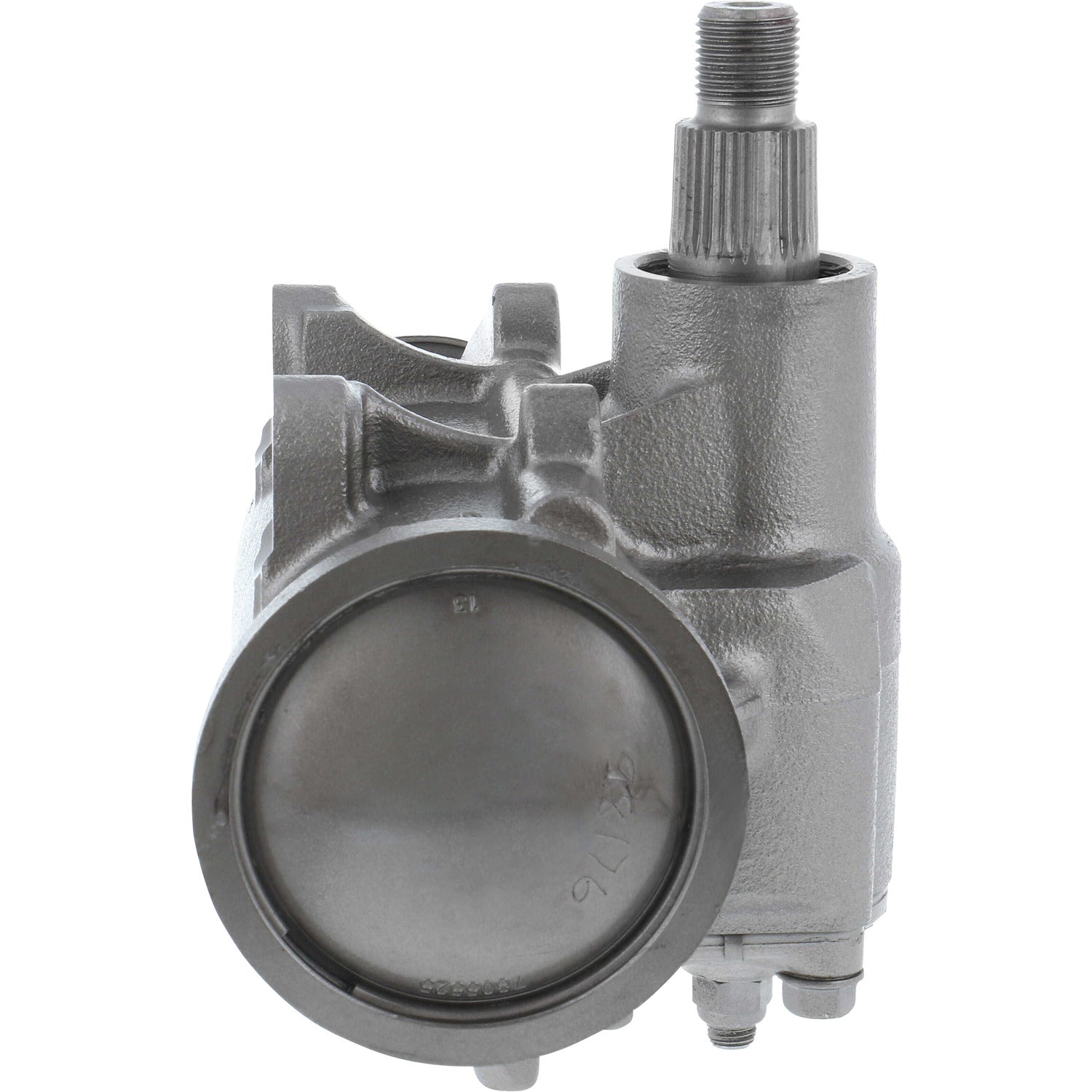

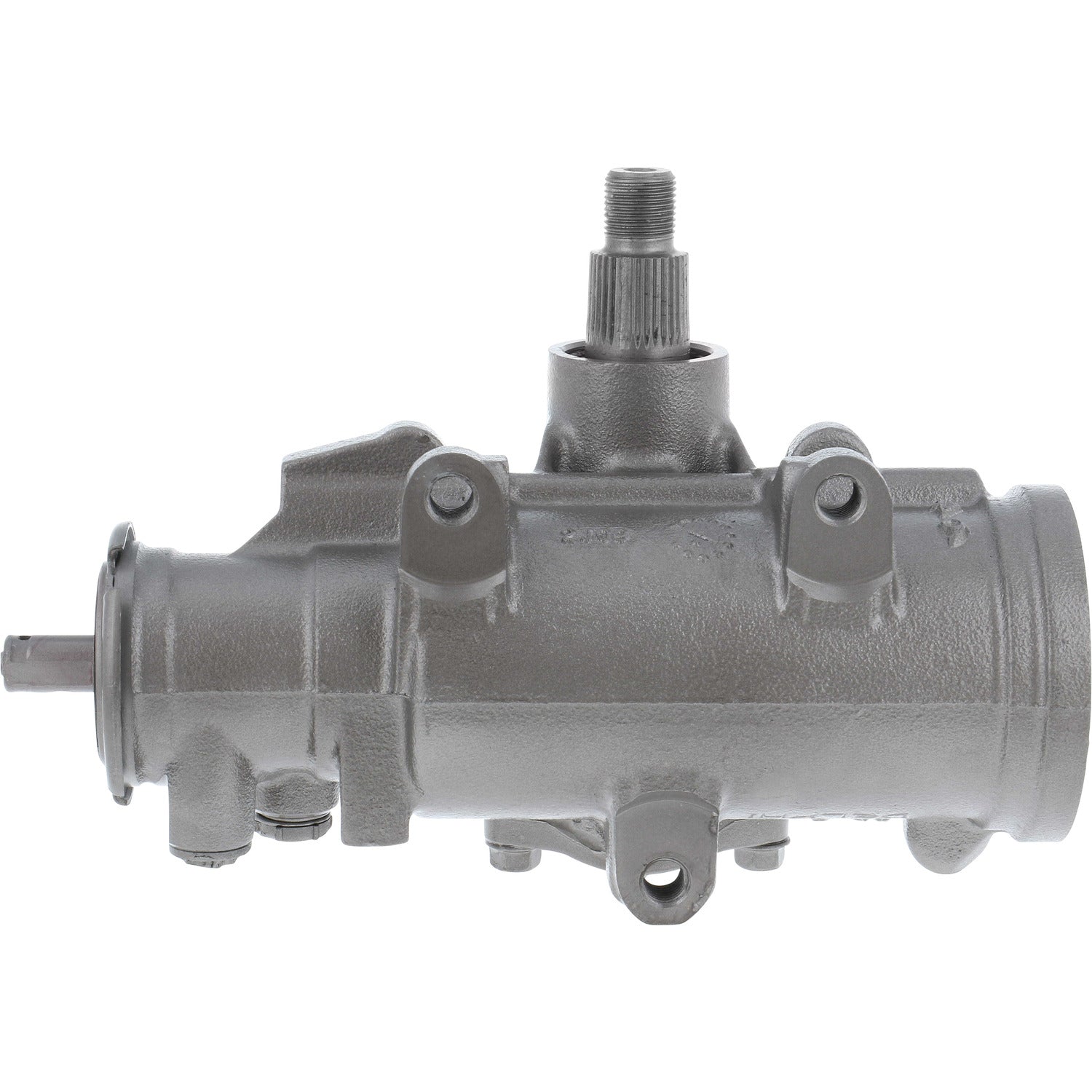

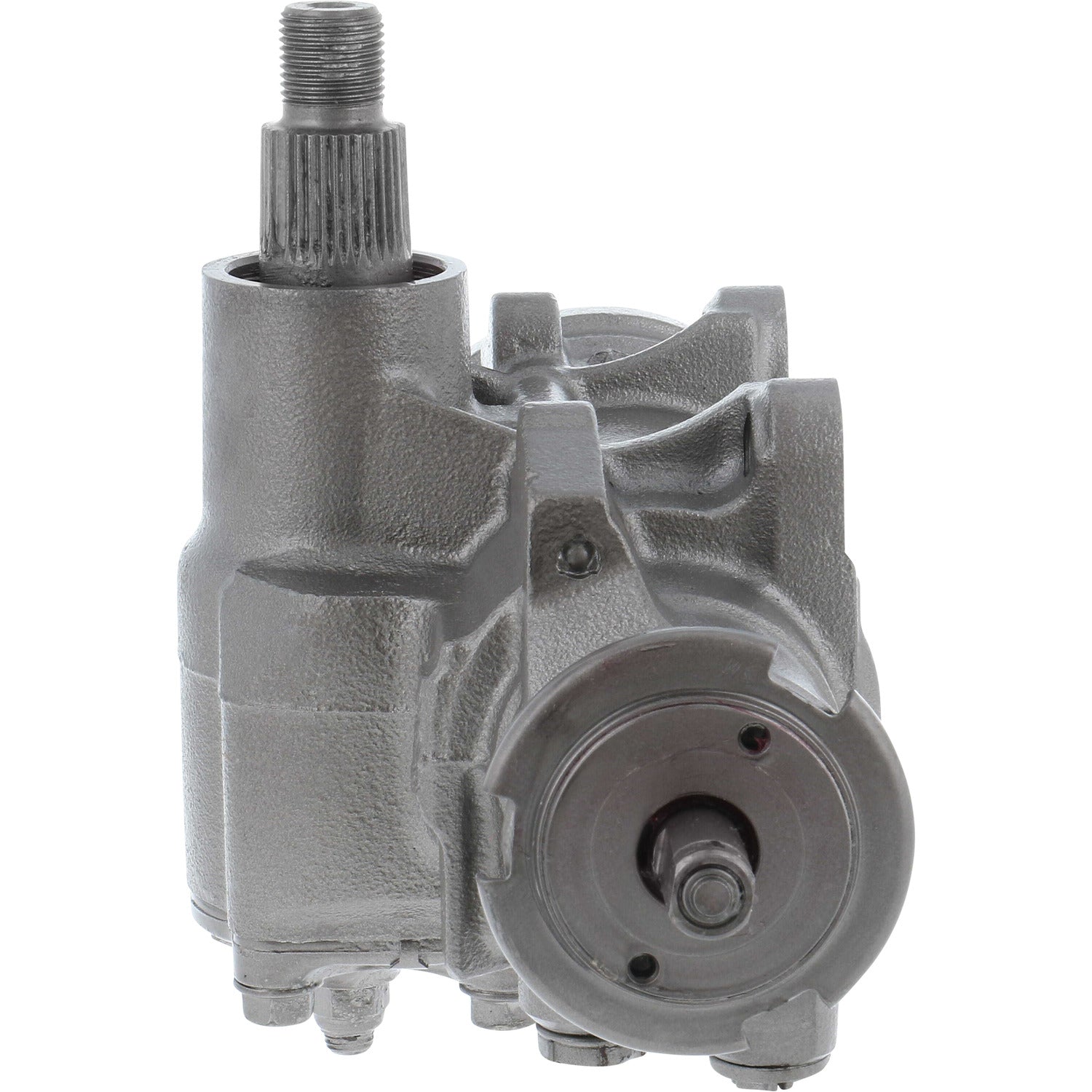

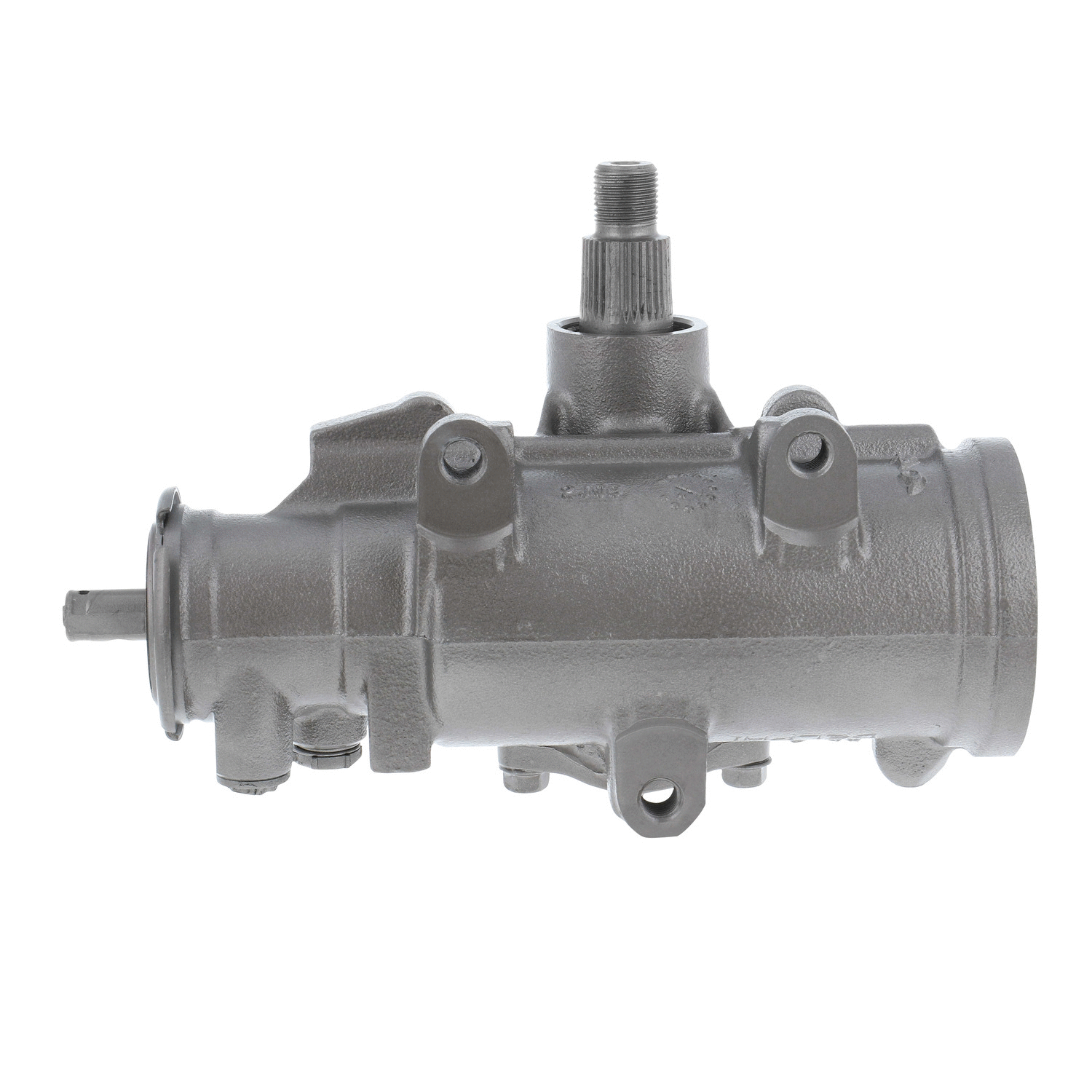

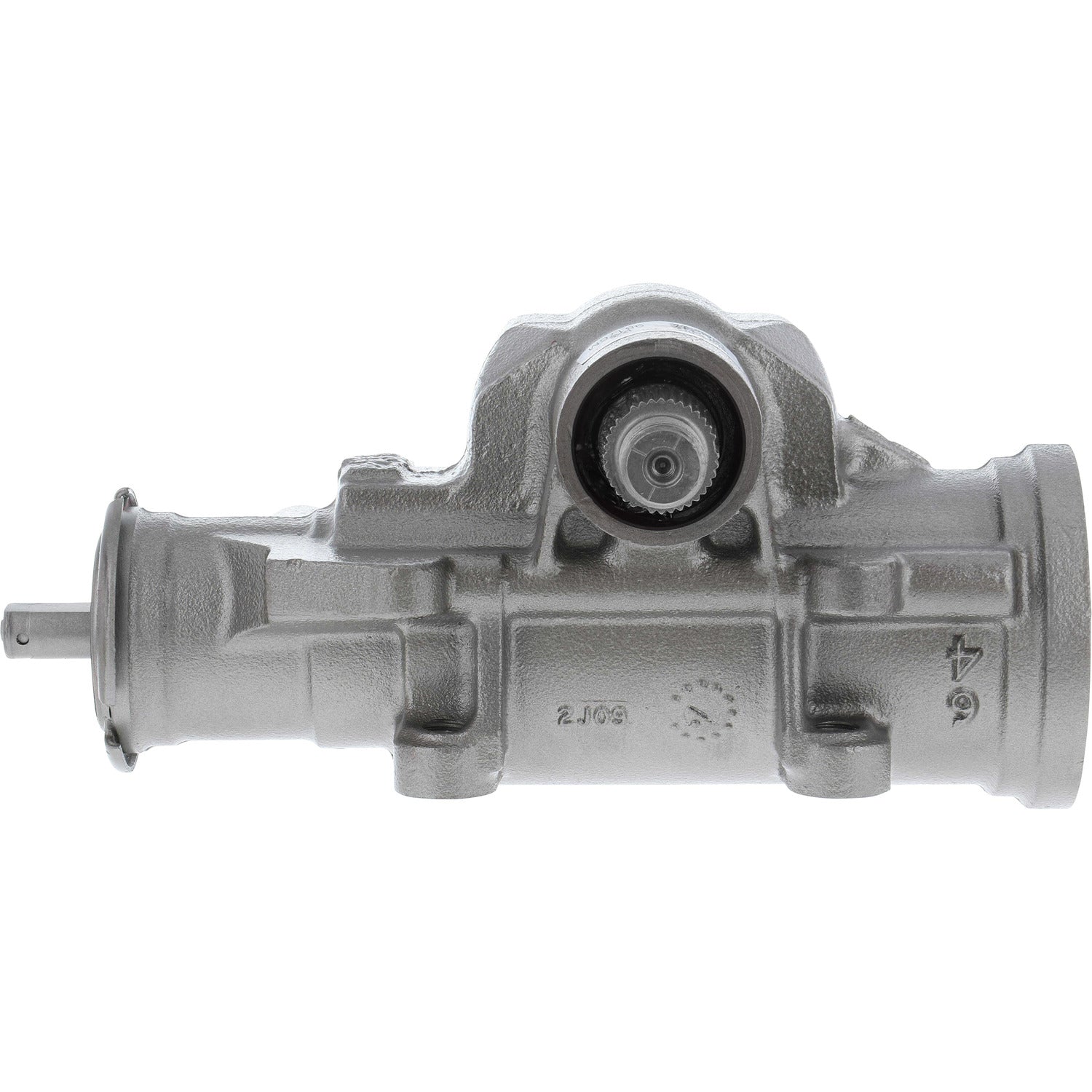

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98176M
Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98176M
SKU:98176M
MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.66 | IN |
| Input Shaft Diameter | 16.76 | MM |
| Input Shaft Type | Double Flat | |
| Mounting Hole Quantity | 3 | |
| Output Shaft Diameter | 1.25 | IN |
| Output Shaft Diameter | 31.75 | MM |
| Pressure Port Thread Size | M18 x 1.5 | |
| Pump Rotation | Standard | |
| Return Port ID Size | 0 | |
| Return Port Thread Size | M16 x 1.5 | |
| Total Turns Lock To Lock | 3.3 |
Application Info: Chevrolet Silverado 1500 (2001-02), Silverado 2500 (1999-00), Suburban 1500 (2001), Suburban 2500 (2000); GMC Sierra 1500 (2001-02), Sierra 2500 (1999-00), Yukon (2001-02), Yukon XL 1500 (2001), Yukon XL 2500 (2000) ***W/33 Splines on Sector Shaft***
Interchange: 15068759, 19150135, 26099875
BBB Cross-Reference: 503-0153
Cardone Cross-Reference: 27-7589
