MAVAL

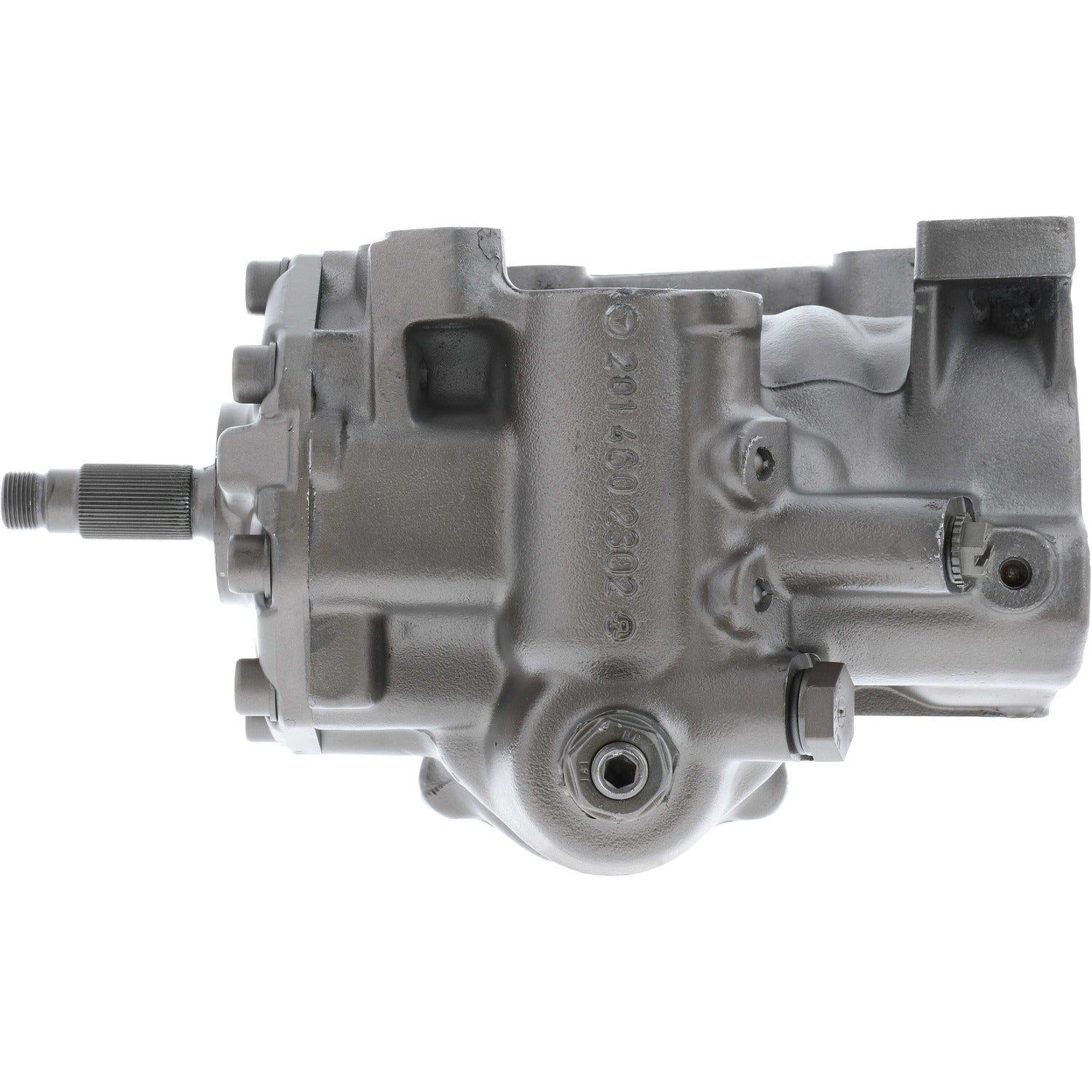

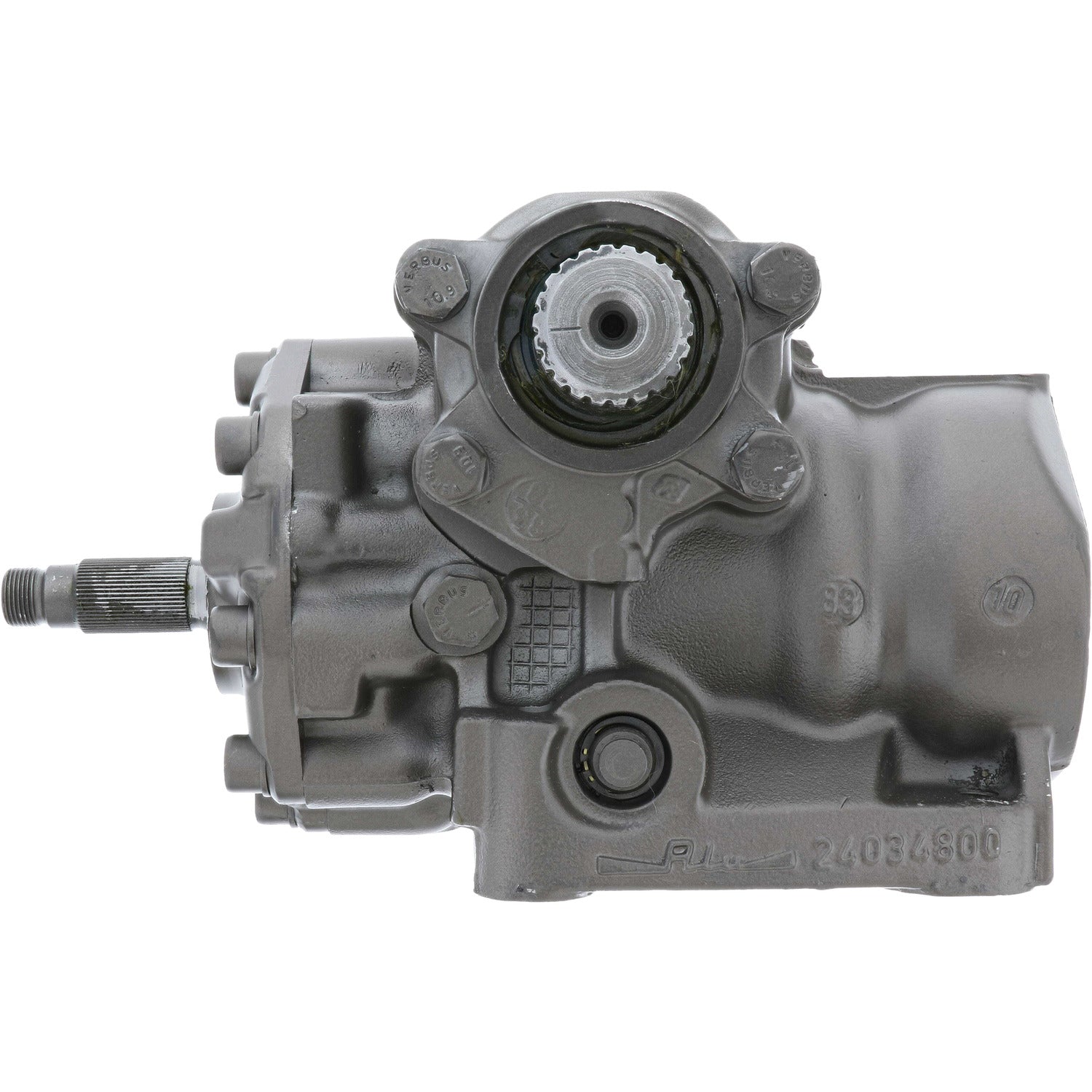

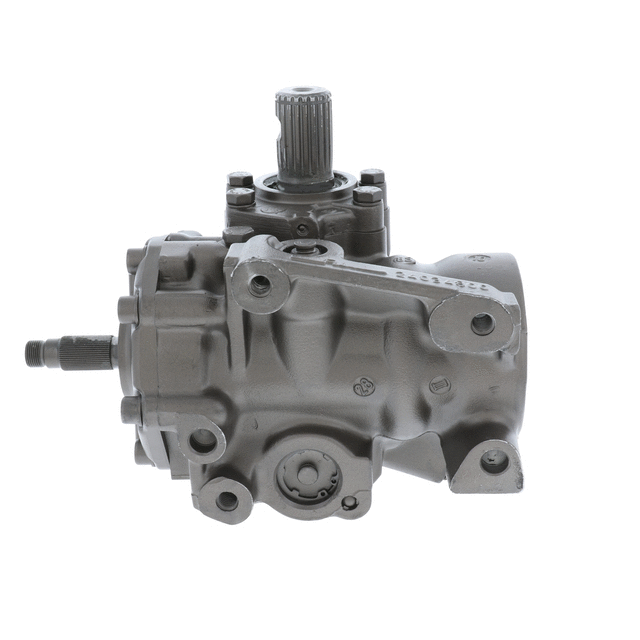

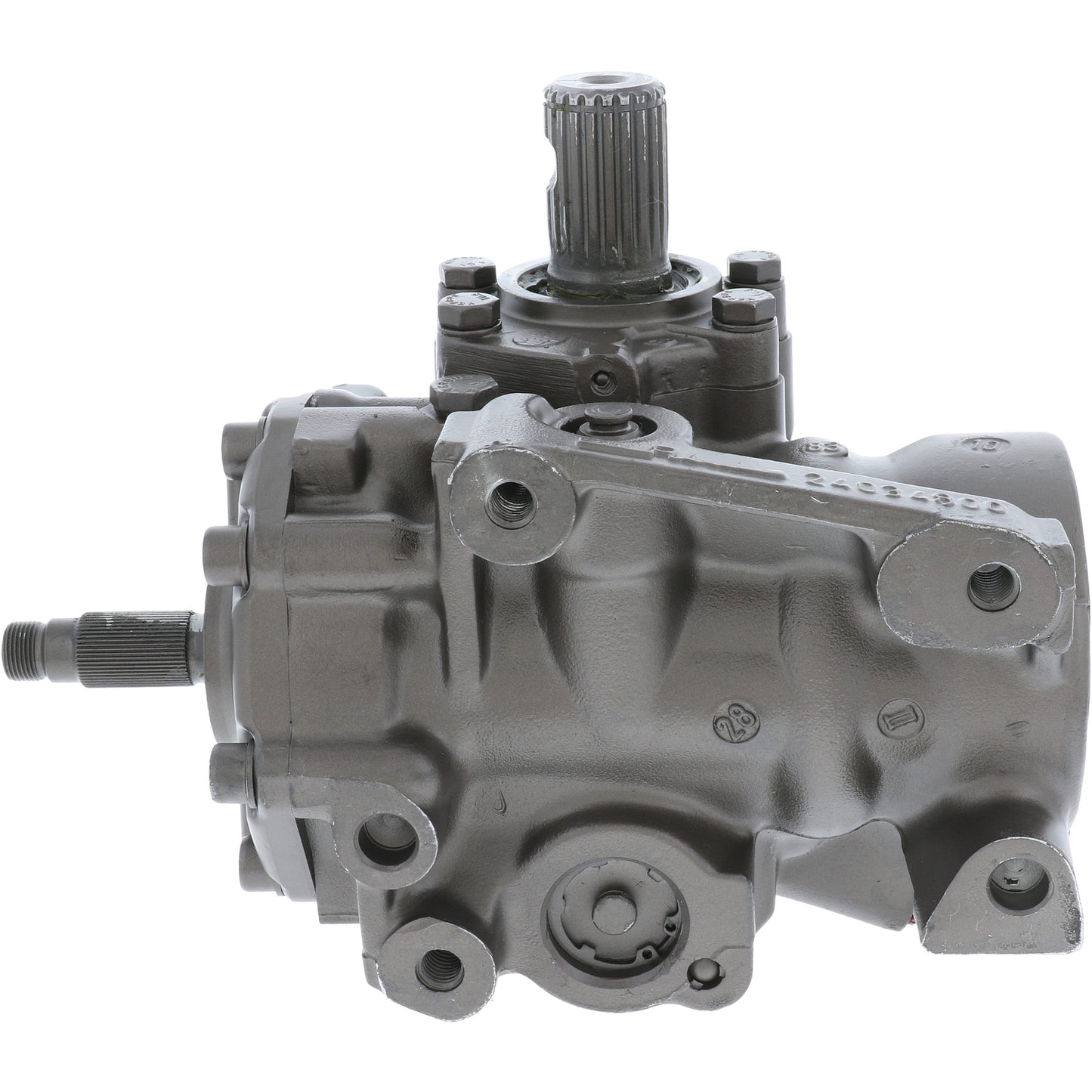

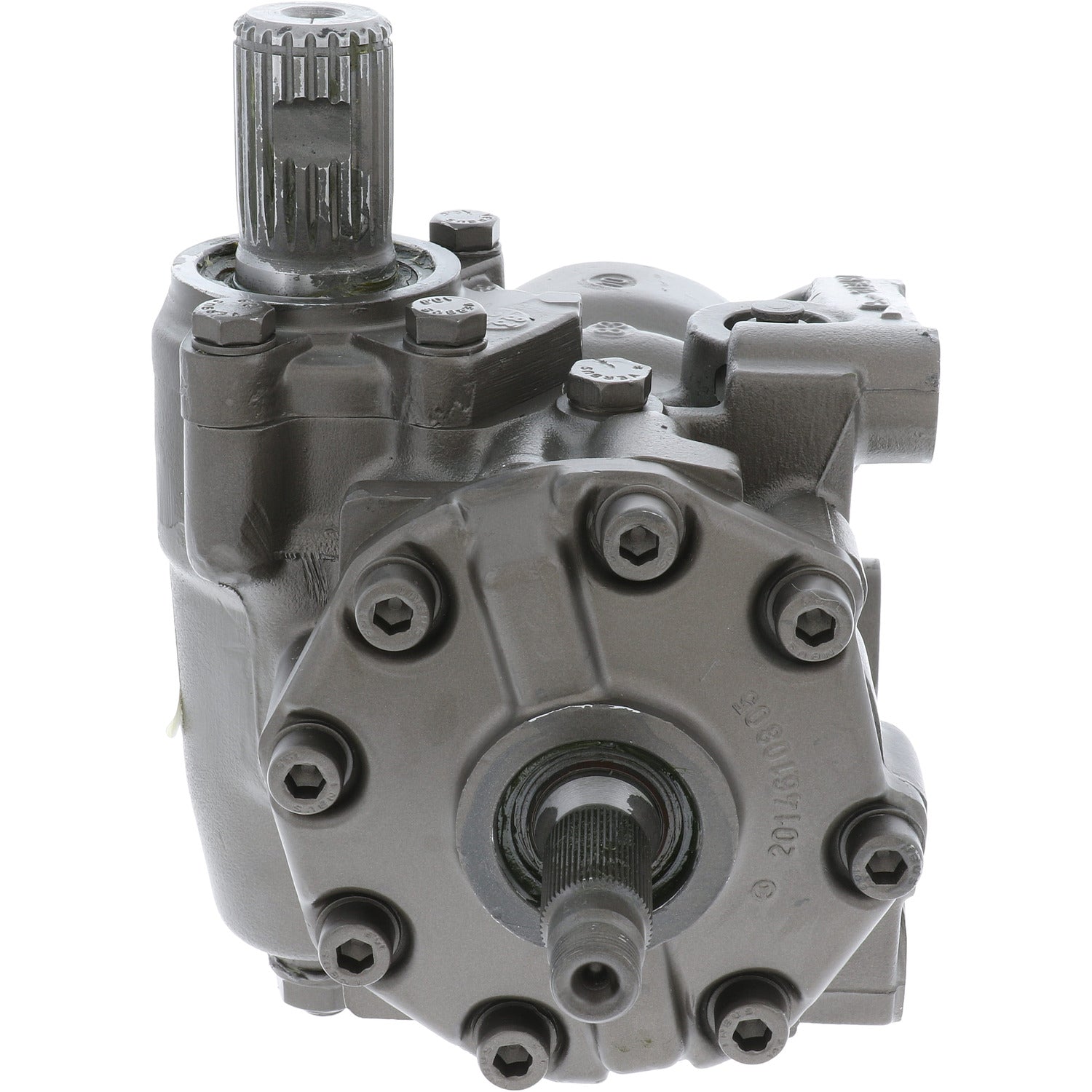

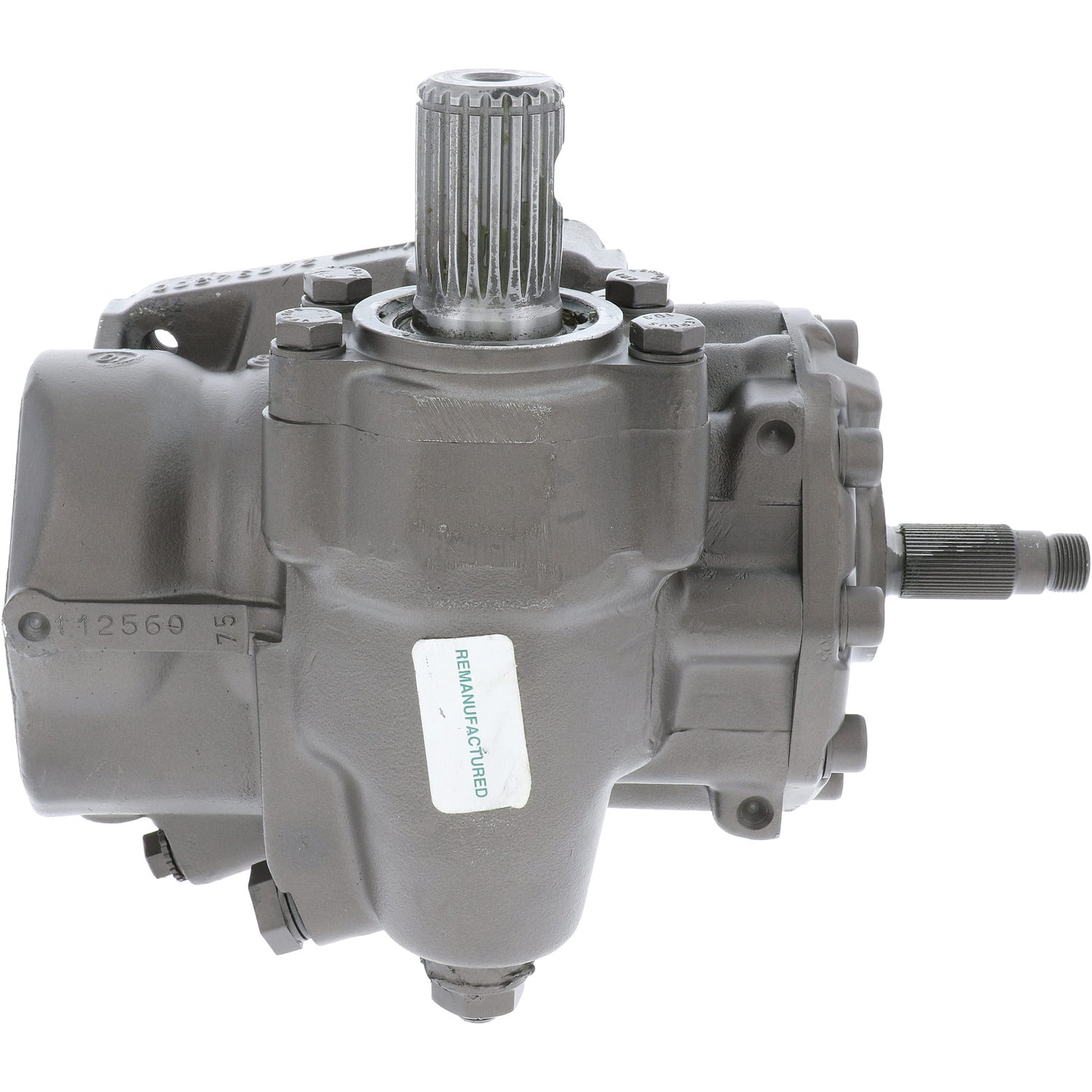

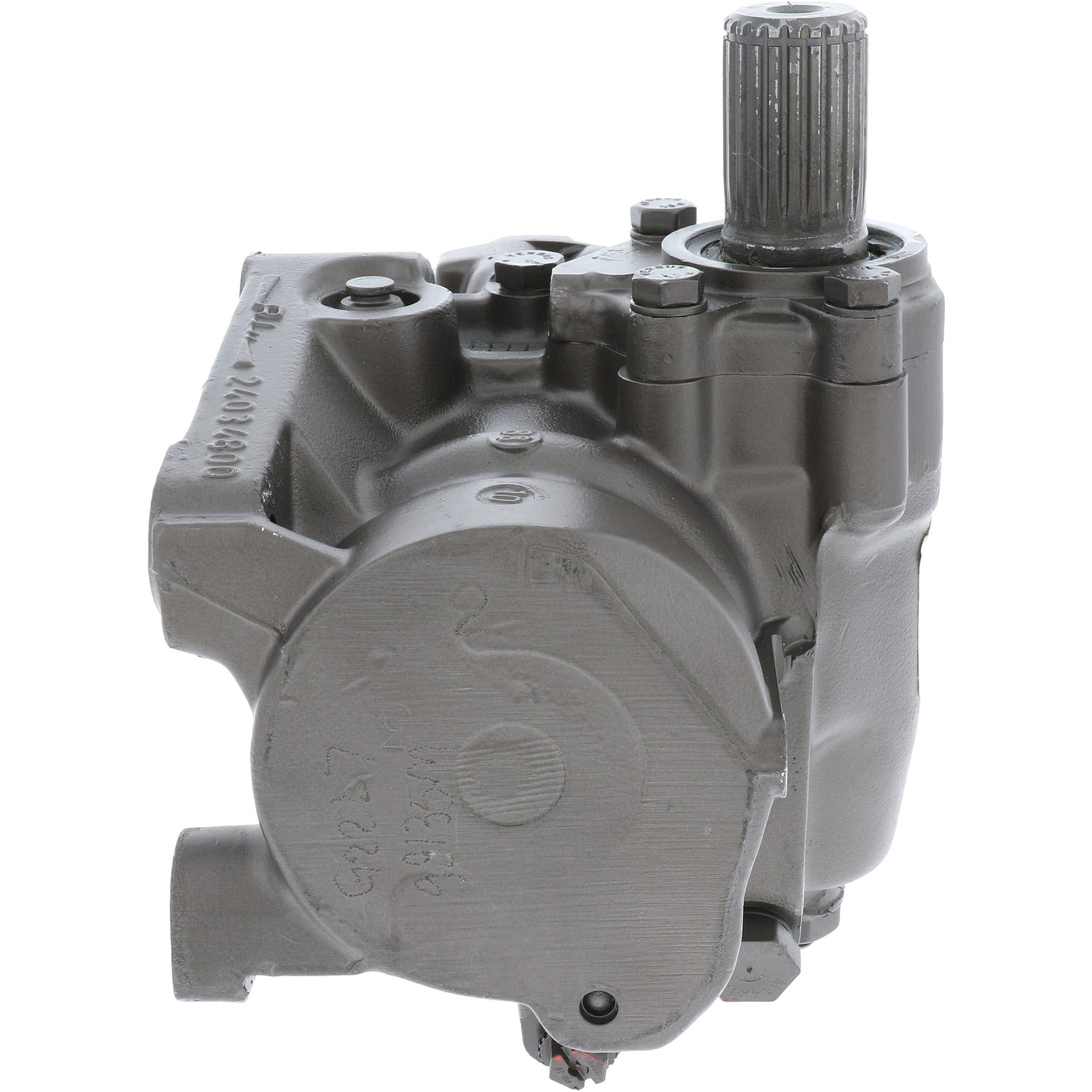

Steering Gear Box - MAVAL - Hydraulic Power - Remanufactured - 98135M

SKU:98135M

MAVAL steering gear boxes are remanufactured and tested to OEM specifications. Our process includes the inspection and replacement of worm/thrust bearings, bushings, and the inspection of ball guides, balls, and the sector shaft. All original snap rings and O-rings are replaced. Each steering gear box has the MAVAL part number etched into the housing as well as a serial number for traceability. All MAVAL gear boxes are 100 percent lash calibrated for precision performance.

Hose Port Type	Annealed Washer
Input Shaft Diameter	0.7	IN
Input Shaft Diameter	17.65	MM
Steering Input Shaft Spline Quantity	54
Input Shaft Type	Splined, Grooved
Mounting Hole Quantity	3
Output Shaft Diameter	1.26	IN
Output Shaft Diameter	32	MM
Pressure Port Thread Size	M12 x 1.5
Pump Rotation	Standard
Return Port ID Size	0
Return Port Thread Size	M14 x 1.5
Total Turns Lock To Lock	3
