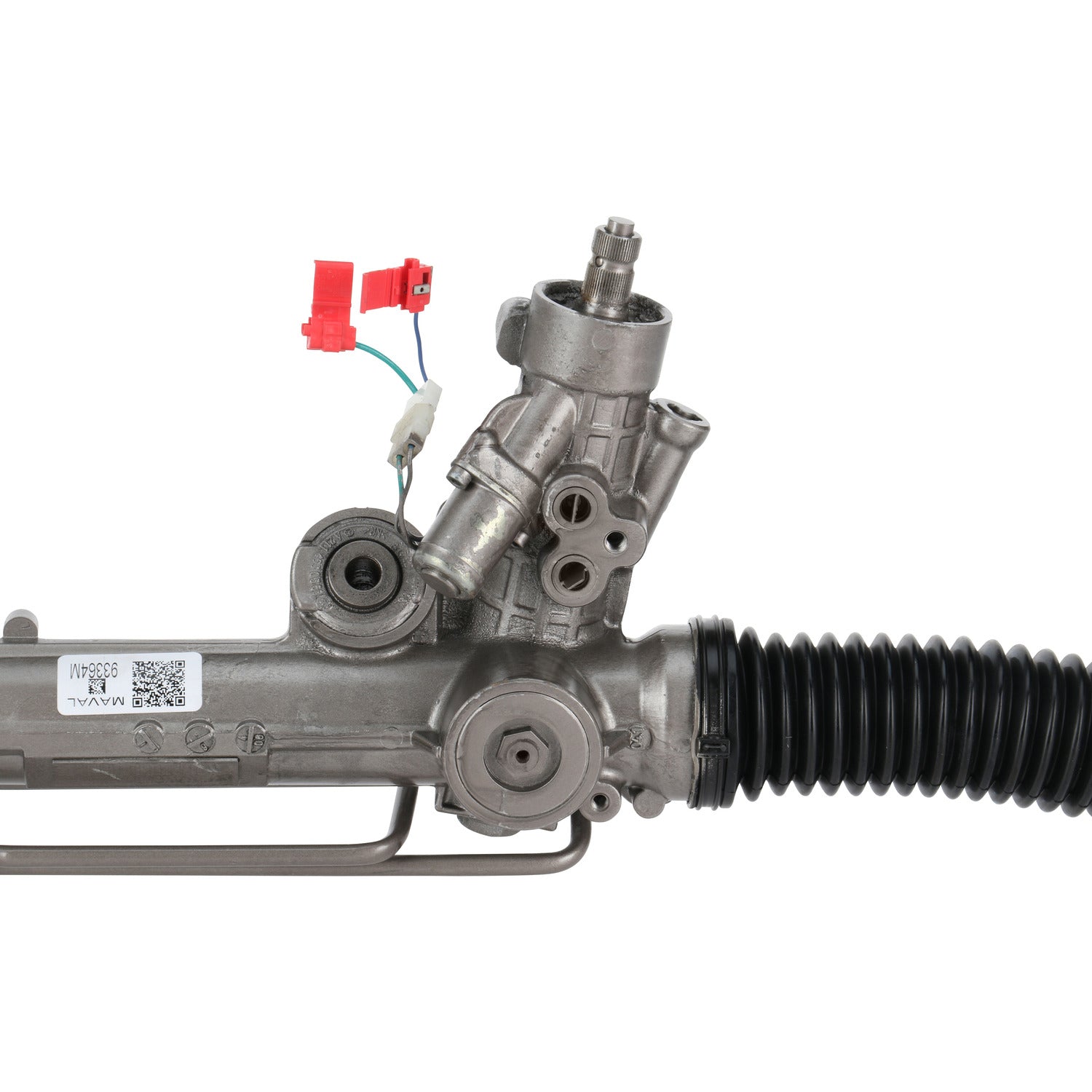

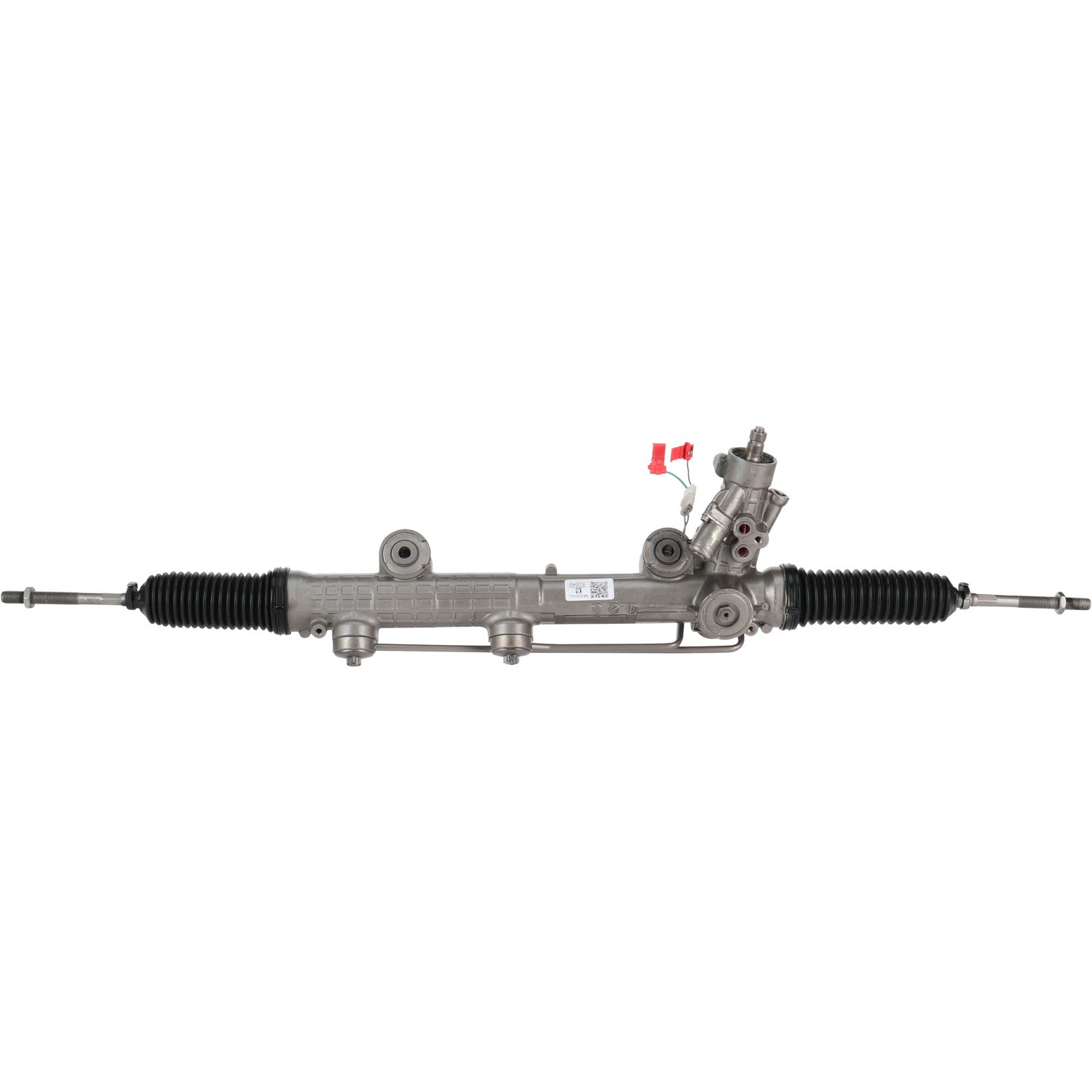

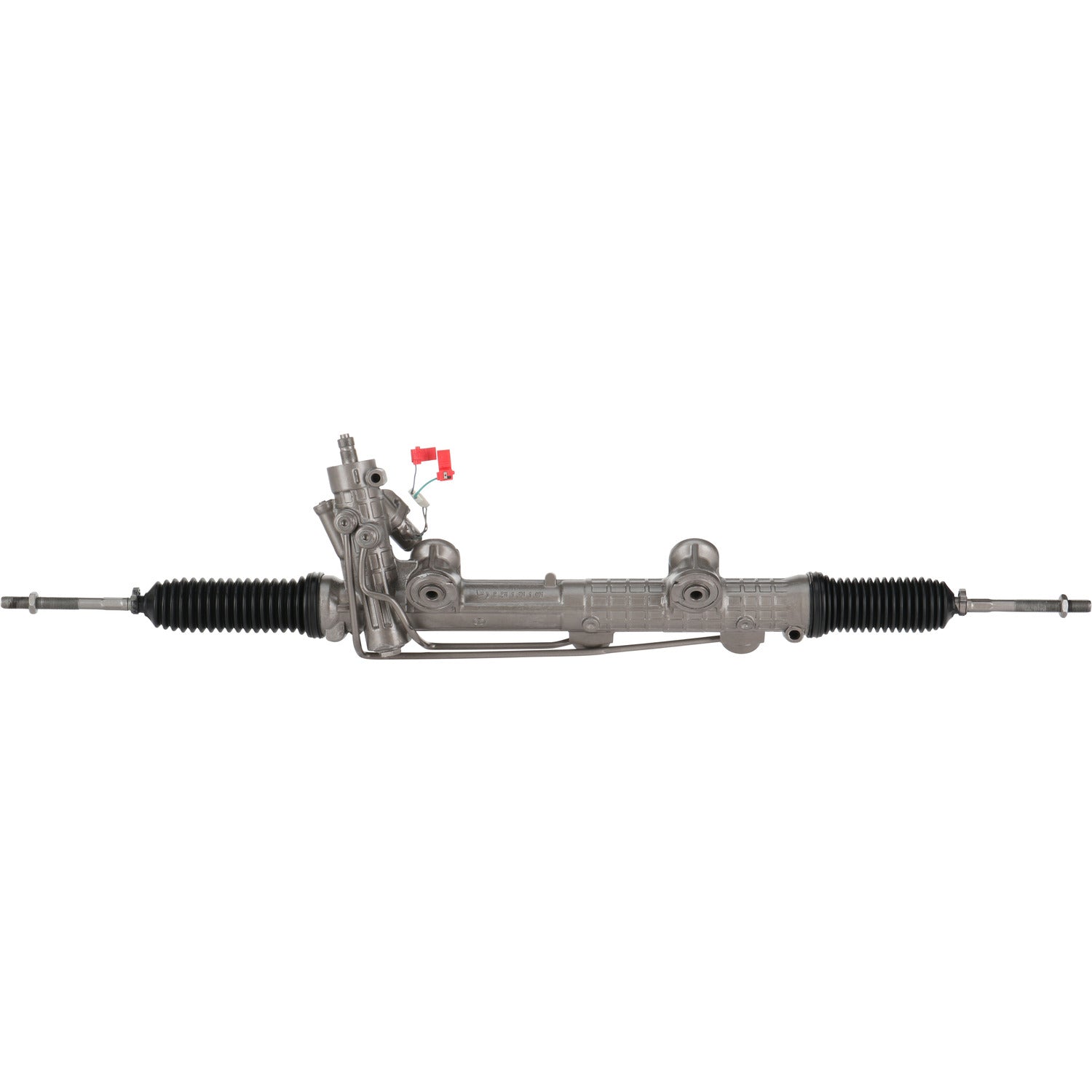

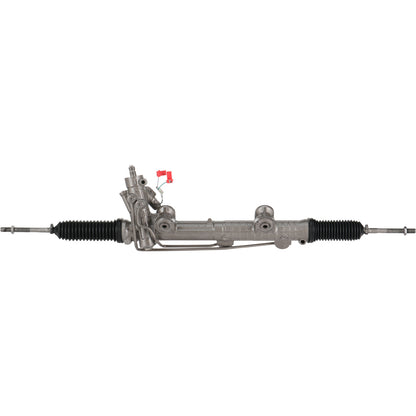

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93364M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93364M
SKU:93364M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 10.63 | IN |
| Distance Between Mounting Holes | 269.88 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.79 | IN |
| Input Shaft Diameter | 20.12 | MM |
| Input Shaft Length | 1.06 | IN |
| Input Shaft Length | 27 | MM |
| Mounting Hole Quantity | 2 | |
| Rack Length | 47.44 | IN |
| Rack Length | 1204.93 | MM |
| Return Port ID Size | 0.436 | |
| Thread Length | 2.94 | IN |
| Thread Length | 74.6 | MM |
| Tie Rod Ends Included | Yes | |
| Total Turns Lock To Lock | 2.69 |
Application Info: 2006 Mercedes-Benz CLS500; 2006-2009 Mercedes-Benz E350 (Drive: RWD / Qualifier: with Servotronic Steering / Note: W/Sport Package); 2007-2011 Mercedes-Benz CLS63 AMG; 2007-2009 Mercedes-Benz E63 AMG; 2007-2011 Mercedes-Benz CLS550; 2007-2009 Mercedes-Benz E320 (Qualifier: with Electronic Speed Sensitive Steering); 2003-2006 Mercedes-Benz E500 (Drive: RWD / Qualifier: with Sport Package / Note: With Speed Sensitive Steering); 2005-2006 Mercedes-Benz E55 AMG (Note: VIN: A702697)
Interchange: Mercedes-Benz - 219 460 1000
BBB Cross-Reference: 313-0270
Cardone Cross-Reference: 26-4013
Instructions - 1 Instructions - 2
